These are used in nut Assembly to create back pressure on nut after tightening so that it could not get loosed after vibrations in vehicles. Made as per Customer specifications.
Our enterprise is devotionally engaged in manufacturing, exporting and supplying a supreme quality Steel Inserts that are basically demanded international as well as domestic market. The inserts provided by us are extensively are used to install threads in sheet or plate metal. These inserts are manufactured in compliance with international quality standards using high quality raw material and advanced technology. Moreover, our clients can purchase these Steel Inserts from us at reasonable prices within the promised time span.
Features:
- Anti-corrosive
- Easy installation
- Impeccable finish
- Rigid construction
|

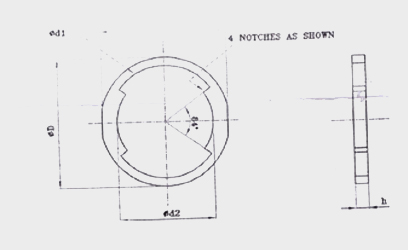

SR.NO. |
Design |
Name |
A/F |
D |
d1/ d2 |
Thk. |
Material |
Hardness |
|
1 |
M6 |
Steel Insert |
A/F-10 |
8.0 |
6.45/4.90 |
0.3 |
SS 301 |
500HV Min. |
|
2 |
M8 |
Steel Insert |
A/F-13 |
10.8 |
8.35/ 6.75 |
0.3 |
SS 301 |
500 HV Min. |
|
3 |
M10 |
Steel Insert |
A/F-17 |
14.5 |
11.45/8.40 |
0.3 |
SS 301 |
500 HV Min. |
|
4 |
M12 |
Steel Insert |
A/F-17 |
14.6 |
12.30/11.65 |
0.4 |
SS 301 |
500 HV Min. |
|
5 |
M16 |
Steel Insert |
A/F-24 |
21.8 |
18.0/ 14.40 |
0.4 |
SS 301 |
500 HV Min. |
|
6 |
M20 |
Steel Insert |
A/F-27 |
26.5 |
22.40/18.30 |
0.5 |
SS 301 |
500 HV Min. |
